High Bay Lights

High Bay Lights

LT-H0101-30
LT-H0101-30

Application

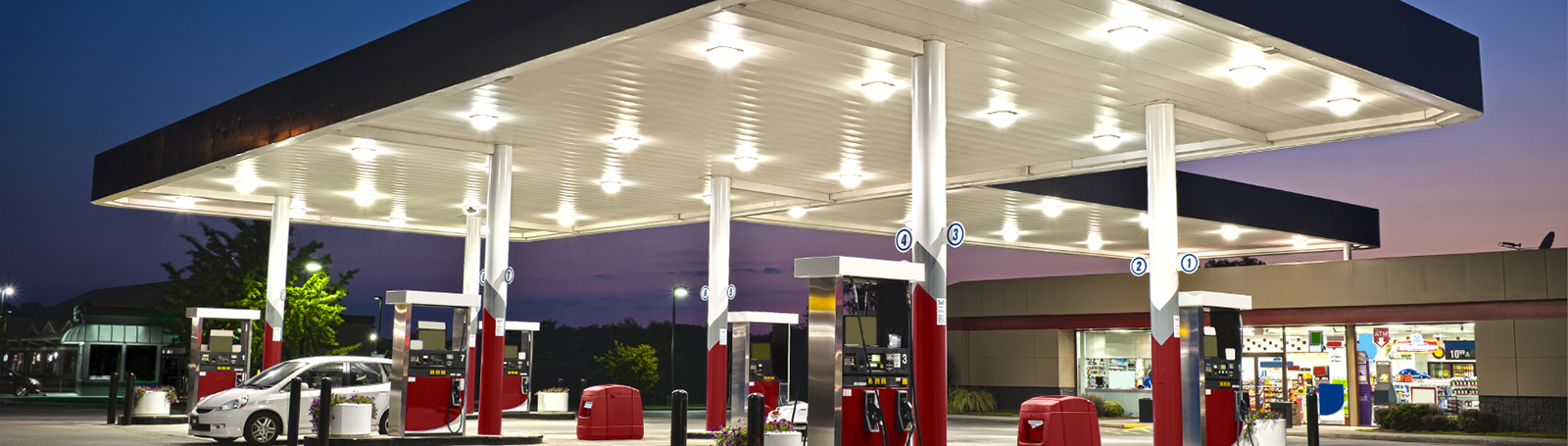

Perfect lighting for parking lots, toll station, warehouse, factory, supermarket, garage, with guaranteed quality and benefits of energy and cost savings.
Features
- -2400K-3500K/3500K-4500K/5000K-6500K/6500-7000K
- -45°/60°
- -AC100-240V 50/60Hz
- -100-120lm
- -IP65 Power Factor＞0.95
- -Lifespan ＞50000h
- -Work Temp -40~50℃
- -Anti-electric shock Rate: Grade I

Specification

High Bay Lights Download

H Serires
NH Serires

Item	LT-H01-T1-24	LT-H01-T1-30	LT-H01-T1-40
Optical Spec
LED Qty	24X1W LED	30X1W LED	30X1-3W LED
Color Temperature	2700K-3500K/4000K-5000K/5000K-6500K	2700K-3500K/4000K-5000K/5000K-6500K	2700K-3500K/4000K-5000K/5000K-6500K
LED Illumination	110-140 lm	110-140 lm	110-140 lm
Lamp Efficiency	70-90 lm/w	70-90 lm/w	70-90 lm/w
Illumination	1680-2160 lm	2100-2700 lm	2800-3600 lm
CRI	70-85	70-85	70-85
Beam Angle	10°/30°/45°/60°/90°/120°(elect)	10°/30°/45°/60°/90°/120°(elect)	10°/30°/45°/60°/90°/120°(elect)
Technical Spec
Input Voltage	AC100-240V 50/60hZ	AC100-240V 50/60hZ	AC100-240V 50/60hZ
Power Factor	>0.9	>0.9	>0.9
Power Range	24W	30W	40W
IP Rating	IP65	IP65	IP65
Operating Temp	-40~50℃	-40~50℃	-40~50℃
Operating Humidity	10-90RH	10-90RH	10-90RH
Net Weight	2.6kg±0.2kg	2.6kg±0.2kg	2.6kg±0.2kg
Lifespan	50000h	50000h	50000h
Dimension(mm)	L280 x W224 x H128	L280 x W224 x H128	L280 x W224 x H128

Model	LT-H0101-30 ( COVER )	LT-H0101-30	LT-H0102-60	LT-H0105-150	LT-H0204-120	LT-H0206-180	LT-H0208-240	LT-H0306-180	LT-H0103-90
Power	30W	30W	60W	150W	120W	180W	240W	180W	90W
Power Factor	>0.95
IP Rating	IP 65
Operating Temperature	-40°～ 50°C
Anti-electric shock Rate	Grade I
Lifespan	＞50000 hours
Color Temperature	2400-7000K (Optional according to guest’s need)
Input Voltage	100-240VAC 50/60Hz
Material	Aluminum Alloy
Net Weight	1.78±0.2kg	1.5±0.2KG	3.3±0.2KG	3.5±0.2KG	6±0.2KG	8.2±0.2KG	9.75±0.2KG	8.16±0.2 KG	4.275±0.2KG
size	L211W180H90	L205W130H90	L260W207H140	L664W270H195	L424W256H195	L424W398H195	L531W424H213	L641W256H195	L400W207H140

Dimension
- LT-H0101-30A
- LT-H0101-30B

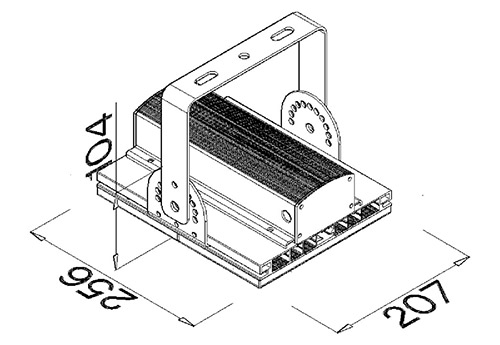

- LT-H0102-60
- LT-H0103-90
- LT-H0204-120
- LT-H0206-180
- LT-H0208-240
- LT-H0306-180

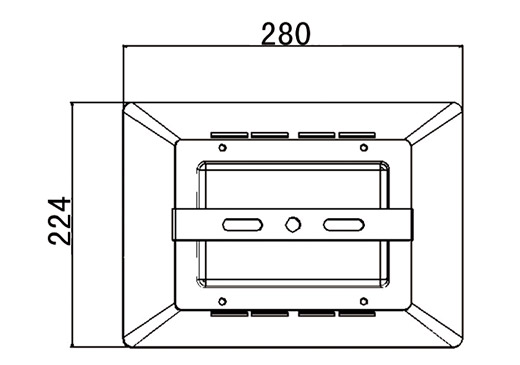

- LT-H01-T1-24
  LT-H01-T1-30
  LT-H01-T1-40
