Wall Washer Series

Application

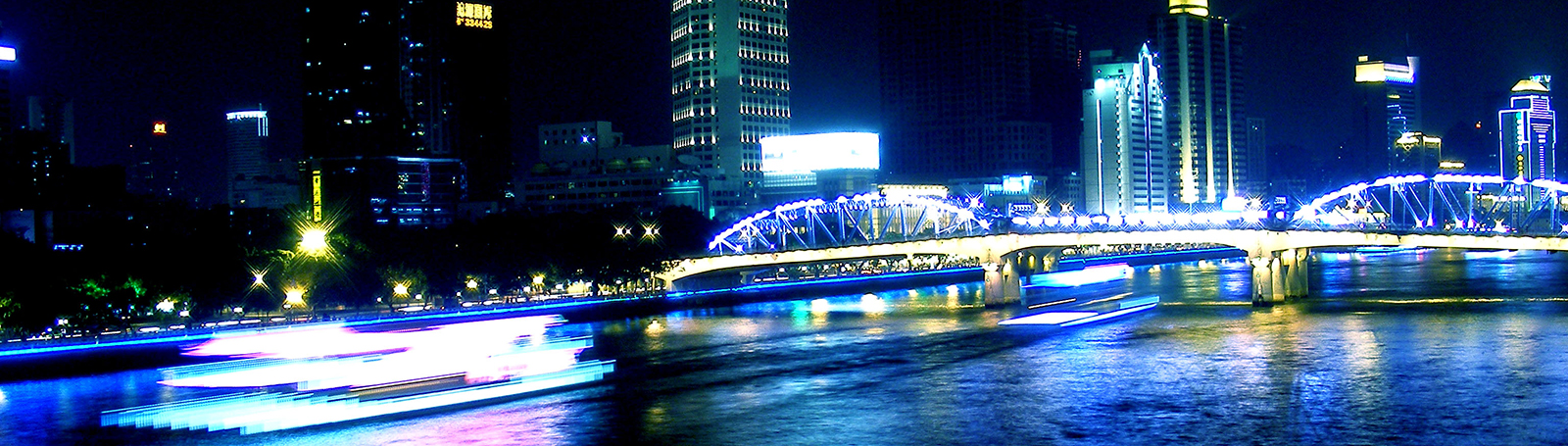

General outdoor lighting for landscape, billboard, architecture, building walls, parking lot, gymnasium, dock, park, tree decoration and alike.
Features
- -10°/30°/45°/60°/90°/120°(elect)
- -2700K-3500K/4000K-5000K/5000K-6500K
- -AC100-240V 50/60Hz
- -60-70lm
- -CRI 70-85
- -Lifespan ＞50000h
- -Work Temp: -40~50℃

Wall Washer Series Download

Model	LT-F61-10-30	LT-F62-10-18	LT-F63-10-18	LT-F64-10-24	LT-F65-10-30	LT-F66-10-24
Power	30W	18W	18W	24W	30W	24W
Power Factor	>0.9
IP Rating	IP 67
Operating Temperature	-40°～ 50°C
Anti-electric shock Rate	Grade I
Lifespan	＞50000 hours
Color Temperature	2400-7000K (Optional according to guest’s need)
Input Voltage	AC100-240V 50/60hZ
LED Illumination	110-140 lm
Lamp Efficiency	70-90 lm/w
CRI	70-85

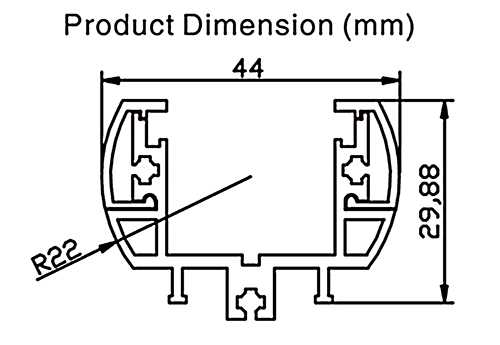

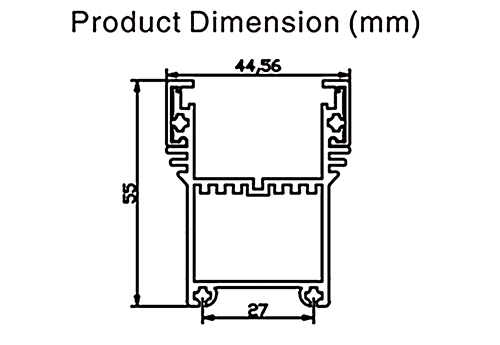

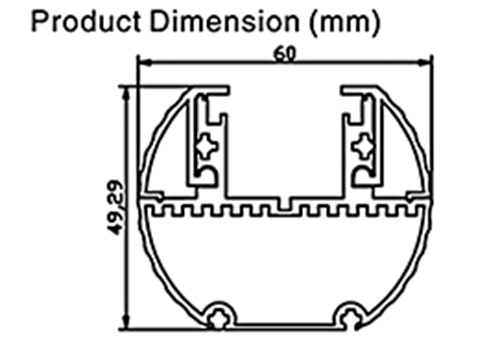

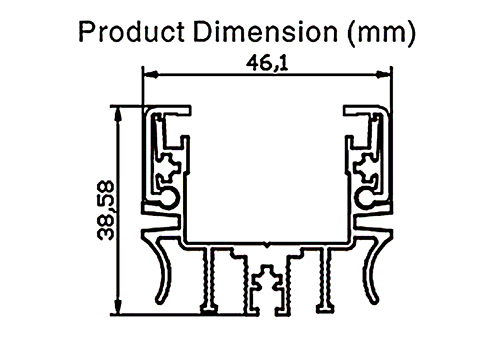

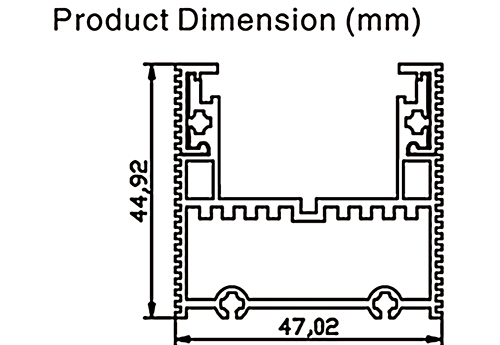

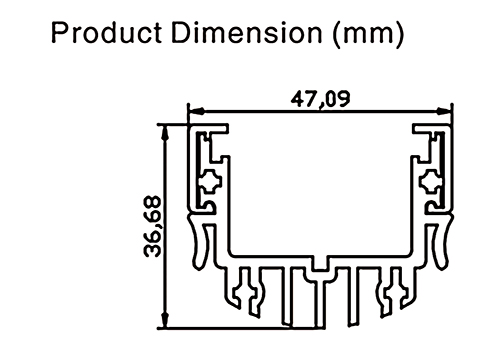

Dimension(mm)	L1000
Net Weight	1.55kg±0.2kg	1.95kg±0.2kg	1.85kg±0.2kg	1.8kg±0.2kg	2.3kg±0.2kg	1.55±0.2KG
