Floodlight Series

Floodlight Series

LT-H0101-30A
LT-H0101-30B
LT-H0102-60
LT-H0103-90
LT-H0204-120
LT-H0206-180
LT-H0208-240
LT-H0306-180
LT-NH0102-T1-60
LT-NH0103-T1-90
LT-NH0104-T1-120
LT-NH0105-T1-150
LT-NH0202-T1-60
LT LED Searchlight

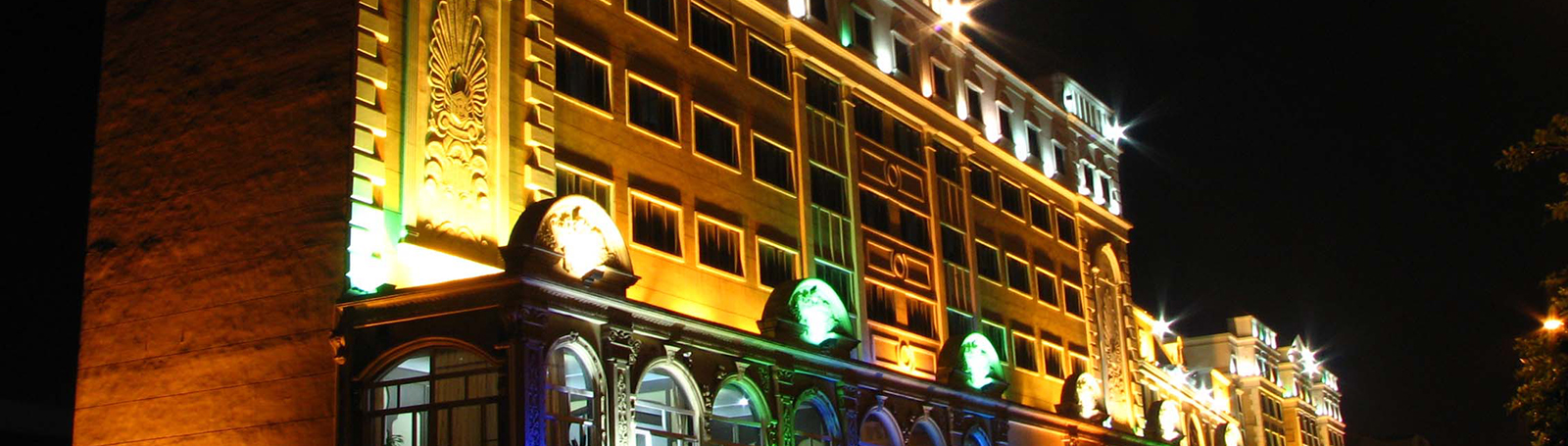

Application

Professional lighting for environments like museums, art galleries, cosmetic, outdoor signages of retail shops, exhibition booths, etc. Good options to replace traditional MH and HPS lights.
Features
- -360W-700W Available
- -CRI >75
- -13-level typhoon resistant
- -IP65
- -Ideal for replacing 1000-3500W metal halide lamps
- -50,000 hrs
- -Color temperature 2,400K – 6,500K
- -3-year warranty

Specification

Floodlight Series Download

Item	LT-H0101-30A	LT-H0101-30B	LT-H0102-60	LT-H0103-70	LT-H0105-150	LT-H0204-120	LT-H0206-180	LT-H0208-240	LT-H0306-180
LED Qty	30X1W	30X1W	60X1W	70X1W	150X1W	120X1W	180X1W	240X1W	180X1W
Color Temperature	2300-60000K
LED Illumination	110-160lm
Lamp Efficiency	100-120lm/w
Illumination	3000-3600lm	3000-3600lm	6000-7200lm	7000-10800lm	15000-18000lm	12000-14400lm	18000-21600lm	24000-28800lm	18000-21600lm
CRI	70-70
Beam Angle	45 °/60 °(elect)
Technical Spec
Input Voltage	AC100-240V 50/60HZ
Power Factor	>0.7
Power Range	25-35W	25-35W	55-65W	85-75W	145-155W	115-125W	175-185W	235-245W	/
IP Rating	IP65
Wind Resistance Level	13
Shockproof Level	10G
Operating Temp	-40~50℃
Operating Humidity	10-70RH
Net Weight	1.5kg±0.2kg	1.78kg±0.2kg	3.3kg±0.2kg	4.275±0.2kg	/	6kg±0.2kg	8.2kg±0.2kg	7.75±0.2kg	8.16kg±0.2kg
Lifespan	＞3 years
Dimension(mm)	L205×W130×H70	L211×W180×H70	L260×W207×H140	L400×W207×H140	/	L424W256H175	L424W378H175	L531W424H213	L641W256H175

Item	LT-NH0102-T1-60	LT-NH0103-T1-70	LT-NH0104-T1-120	LT-NH0105-T1-150	LT-NH0106-T1-180	LT-NH0107-T1-210	LT-NH0202-T1-60
LED Qty	60X1W	70X1W	120X1W	150X1W	180X1W	210X1W	60X1w
Color Temperature	2300K-3500K/4000K-5000K/5000K-6500K
LED Illumination	110-160lm
Lamp Efficiency	70-120lm/w
Illumination	5400-7200lm	8100-10800lm	12000-14400lm	15000-18000lm	18000-21600lm	21000-25200lm	5400-7200lm/w
CRI	70-70
Beam Angle	24°/36°/60°/70°(elect)	120 x45 / 120 x60 (elect)	120 x45 / 120 x60 (elect)	120 x45 / 120 x60 (elect)	120 x45 / 120 x60 (elect)	120 x45 / 120 x60 (elect)	24°/36°/60°/70°(elect)
Technical Spec
Input Voltage	AC100-240V 50/60HZ
Power Factor	>0.7
Power Range	60W	70W	120W	150W	180W	210W	70W
IP Rating	IP65
Operating Temp	-40~50℃
Operating Humidity	10-70RH
Net Weight	3.7kg±0.2kg	4.41±0.2kg	5.24±0.2kg	5.84±0.2kg	/	/	3.7kg±0.2kg
Lifespan	＞3 years
Dimension(mm)	L315×W230×H170	L300×W210×H150	L430×W260×H150	L470×W310×H150	/	/	L577×W175×H172

Dimension

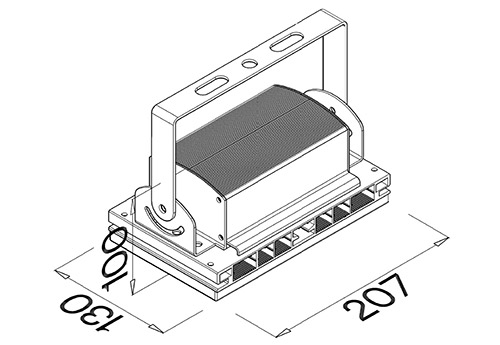

- LT-H0101-30A

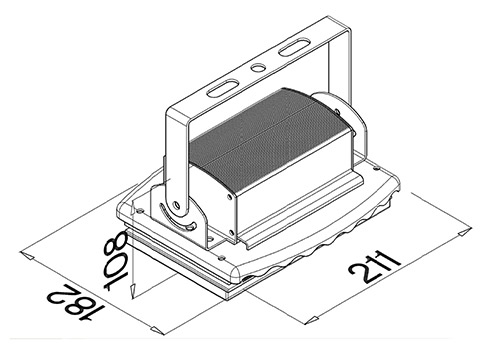

- LT-H0101-30B
- LT-H0102-60

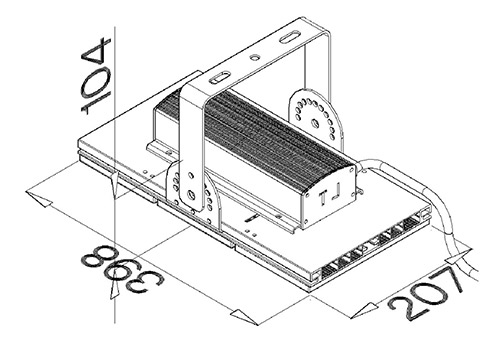

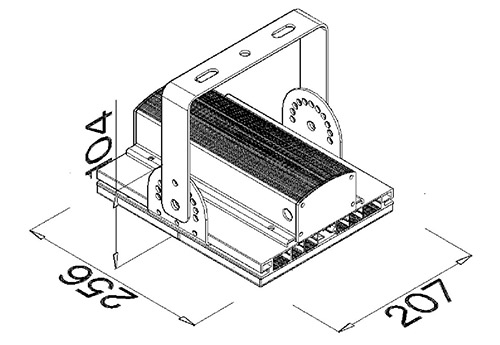

- LT-H0103-90

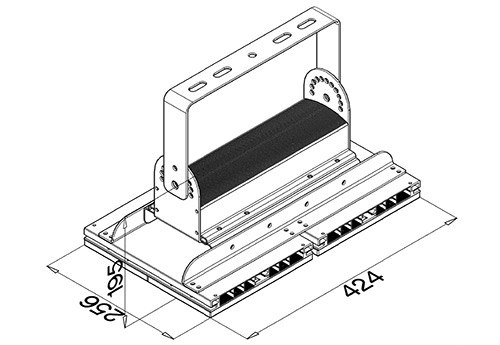

- LT-H0204-120

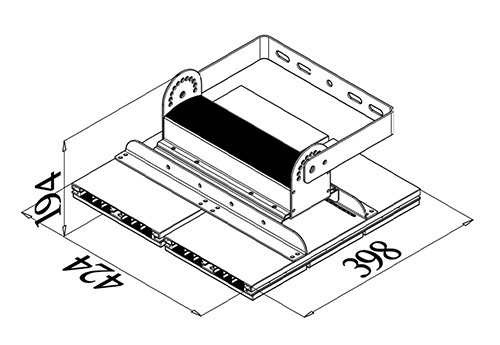

- LT-H0206-180

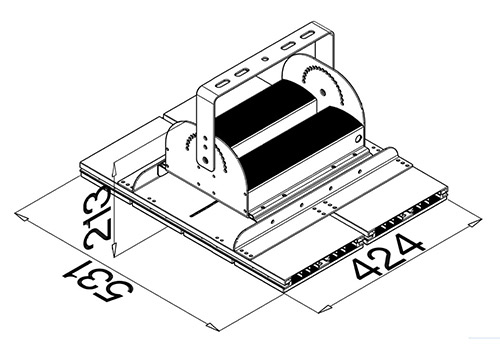

- LT-H0208-240

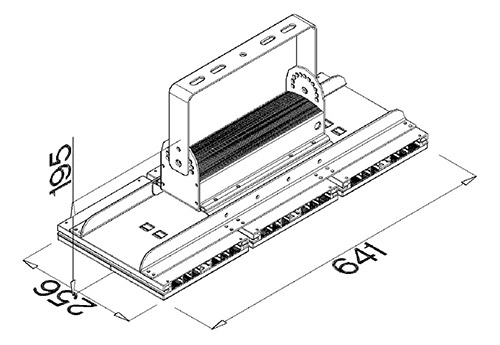

- LT-H0306-180

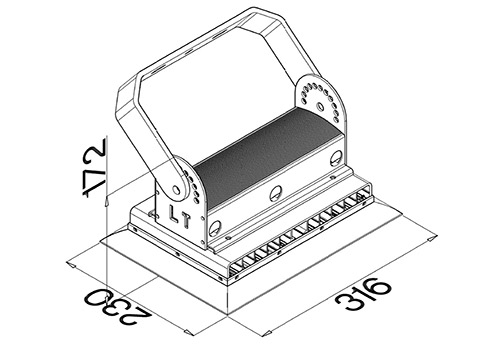

- LT-NH0102-T1-60

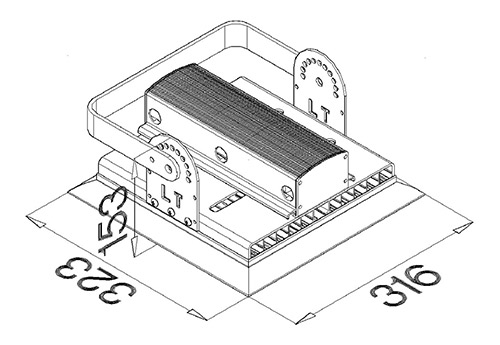

- LT-NH0103-T1-90

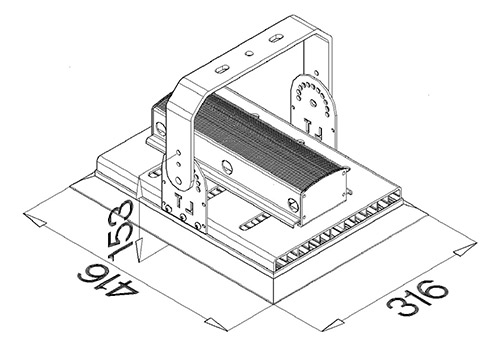

- LT-NH0104-T1-120

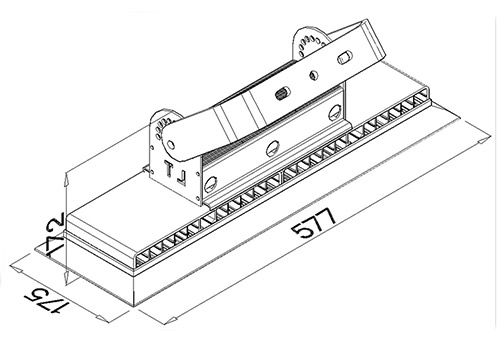

- LT-NH0202-T1-60

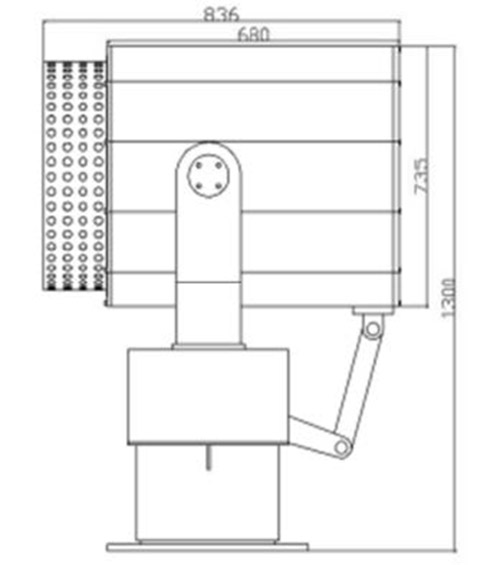

- LT LED Searchlight

Specification

FLT LED Searchlight Download

Item	LT-TSLST-160	LT-TSTL-800	LT-TLST-2000
Optical Spec
Color Temperature	2700K-3500K/4000K-5000K/5000K-6500K	2700K-3500K/4000K-5000K/5000K-6500K	2700K-3500K/4000K-5000K/5000K-6500K
Lamp Efficiency	>60 lm/w	>60 lm/w	>60 lm/w
Illumination	>9600 lm	>48000 lm	>1200000 lm
Beam Angle	1°-8°	1°-8°	1°-8°
Technical Spec
Input Voltage	AC 220-240V AC 110/115V 50/60hZ	AC 220-240V AC 110/115V 50/60hZ	AC 220-240V AC 110/115V 50/60hZ
Power Range	160W	800W	2000W

IP Rating	IP66	IP66	IP66
Operating Temp	-40~50℃	-40~50℃	-40~50℃
Operating Humidity	10-90RH	10-90RH	10-90RH
Net Weight	100kg±0.2kg	200kg±0.2kg	240kg±0.2kg
Lifespan	10000h	10000h	10000h
Dimension(mm)	R470 x H400 x W650	R723 x H1200 x W836	R823 x H1300x W836
